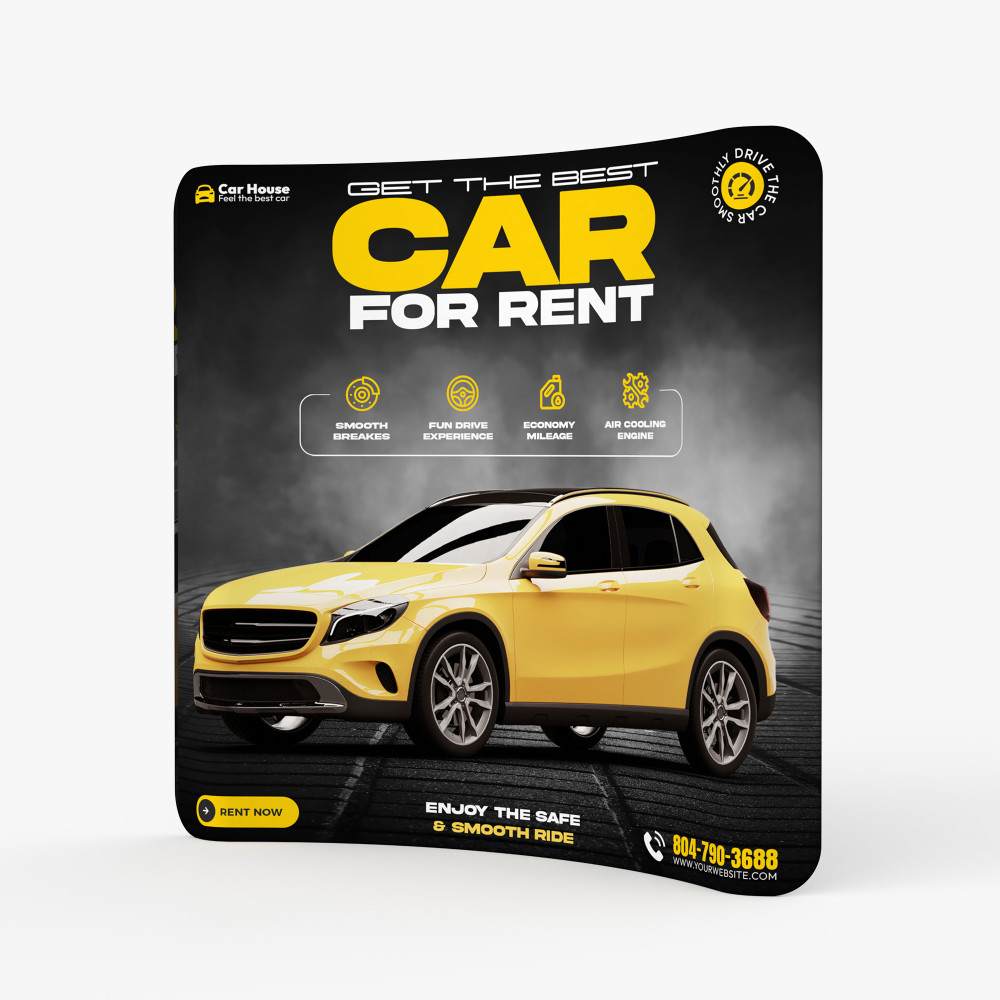

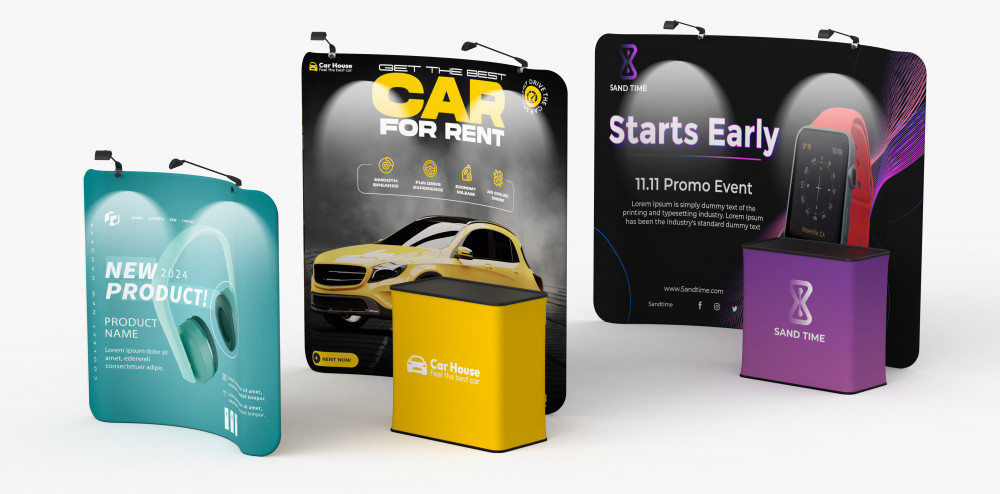

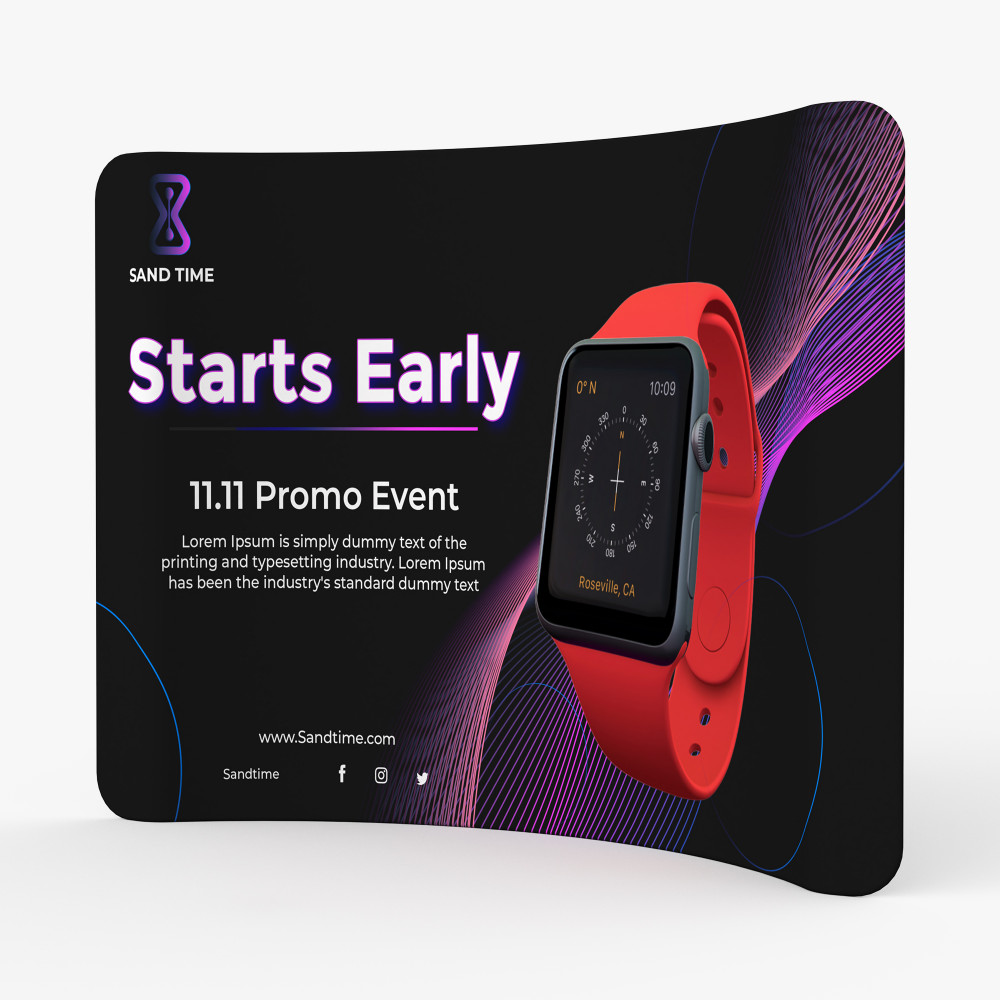

Curved Tension Fabric Display
- Tradeshow fabric displays for exihibits and backdrops

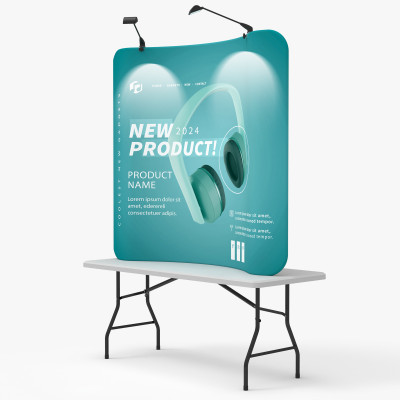

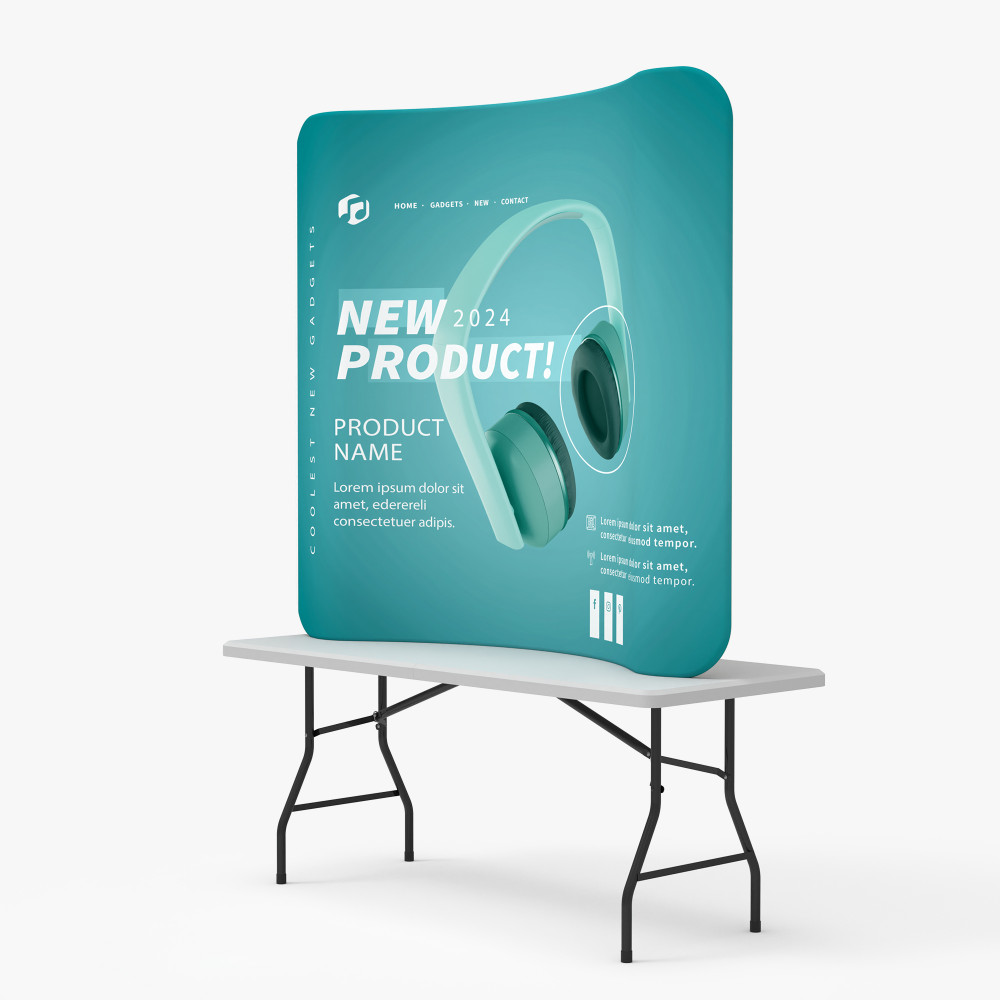

- 8′ and 10′ floor standing displays; 6ft display designed for tabletops

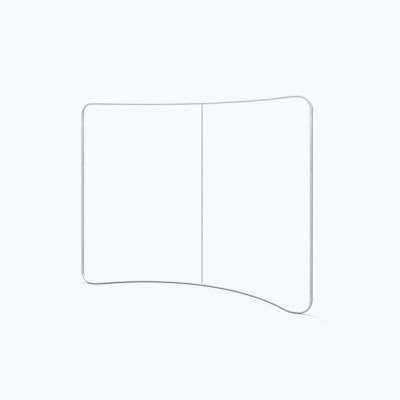

- Curved frame is freestanding

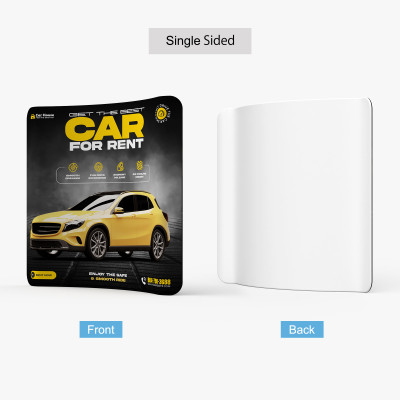

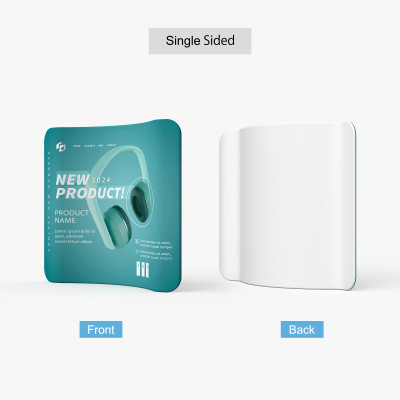

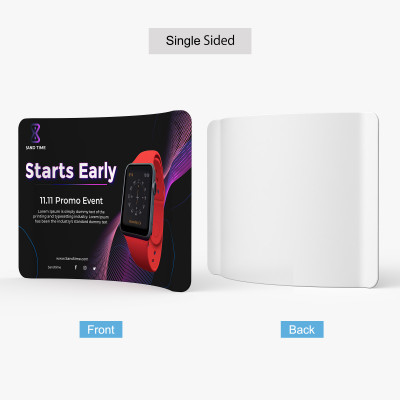

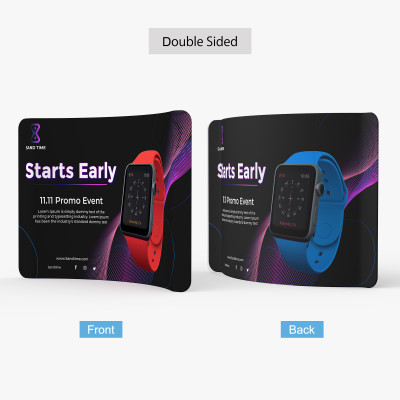

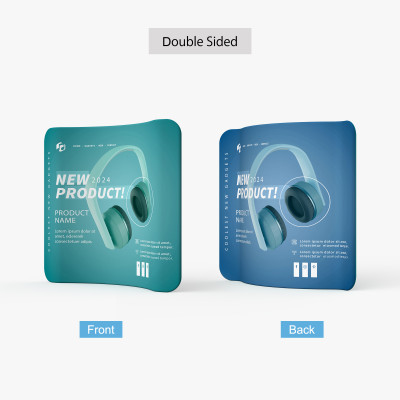

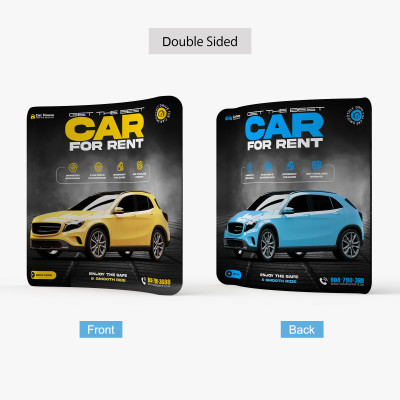

- Single or double sided tension fabric dye-sub print
- Tool free tube hardware·- fast assembly
- Carry bag included for 6′, 8′ and 10′ displays

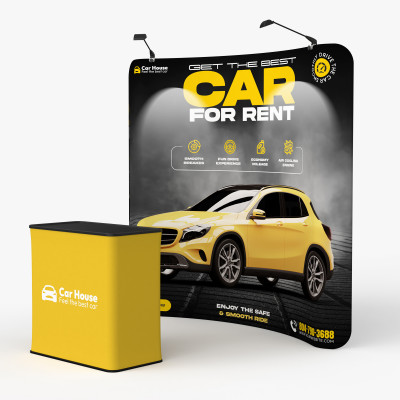

- Hard case / Podium options available for 8′ and 10′
Additional information
Guaranteed safe checkout
Free Delivery 30 Day Trial Free Returns
Need Help? Call Us +1 702 755 14 46
Monday - Friday 9:00 - 17:00
Monday - Friday 9:00 - 17:00
Description
Description
Our tension displays consist of a lightweight but durable aluminum hardware and a fabric dye sublimated print. The hardware is inserted inside the print, much like a pillow into a pillowcase. The fabric print is stretched tight across the frame and zipped close.
Spec
Material:
- 8.8 oz. Tension Fabric
Hardware:

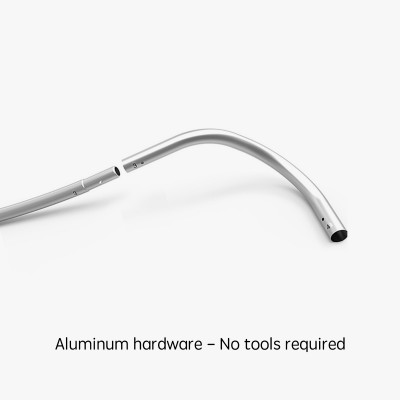

- Aluminum – Interlocking tube

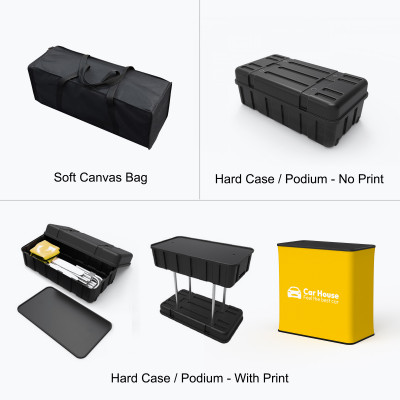

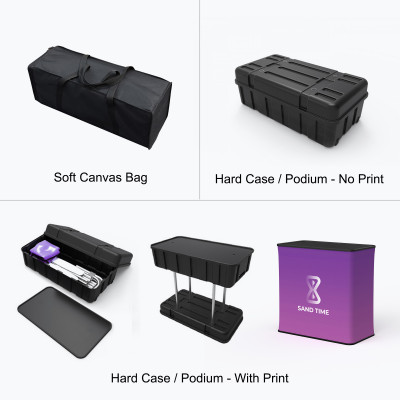

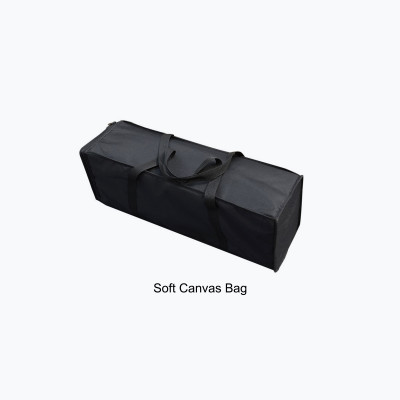

- Soft canvas bag (complimentary)
- Hard Case – Durable Plastic (optional)
Size and Weight :
| Size and Weight | 6ft Curve Shape | 8ft Curve Shape | 10ft Curve Shape |
|---|---|---|---|
| Display Size | 72″W x 60″H | 96″W x 89″H | 120″W x 89″H |
| Graphic Size | 78″W x 65.5″H | 102″W x 91″H | 124.5″W x 91″H |
| Weight (w/ soft canvas bag) | 15 lbs | 20 lbs | 22 lbs |
| Weight (w/ podium & led lights) | N/A | 51 lbs | 55 lbs |
| Package Size (soft canvas bag) | 32″W x 10″H x 9″D | 32″W x 11″H x 11″D | 32″W x 11″H x 11″D |
| Package Size (hard case) | 40″W x 21″H x 17″D | 40″W x 21″H x 17″D | 40″W x 21″H x 17″D |
| Podium Size | 37″W x 37″H x 20″D | 37″W x 37″H x 20″D | 37″W x 37″H x 20″D |
File Setup
- Accepted File Formats: JPEG or PDF (single page only)
- Color Space: CMYK
- Resolution: 150dpi for raster images (More than enough for large format)
- Max File Upload Size: 300MB
- Submit artwork built to ordered size – Scaled artwork is automatically detected and fit to order
- Do not include crop marks or bleeds
- Double sided products will be uploaded as two separate files unless otherwise specified in the artwork template
Additional Tips
- Do not submit with Pantones/Spot Colors – Convert to CMYK
- Convert live fonts to outlines
- Use provided design templates when available
Template Download
| Curve Tension Fabric Display |  |
|---|---|
|
6′ Curve Shape |
|
|
8′ Curve Shape |
|
|
10′ Curve Shape |
|
|
Podium |
- Do not adjust artboard size
- Do not reposition guidelines
- Design on layer labelled “Artwork”
- Delete mask/guide layers when instructed by template
Installation Guide

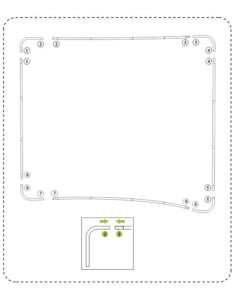

Connect tubes of the frame (There are number labels on the tubes)

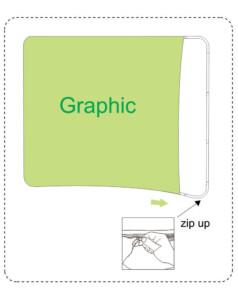

Wrap up the frame with the graphic from left to right, then zip up

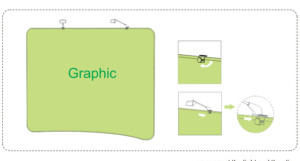

Put the light clip on the top of the display and fix it with screw, then connect the light and the clip
Delivery Info
- Standard and Express delivery services are available for all items.
- Shipping costs are calculated at the checkout page (after delivery option & destination confirmation).
- Tracking is available for all delivery options.
- Items are delivered during standard business hours.
